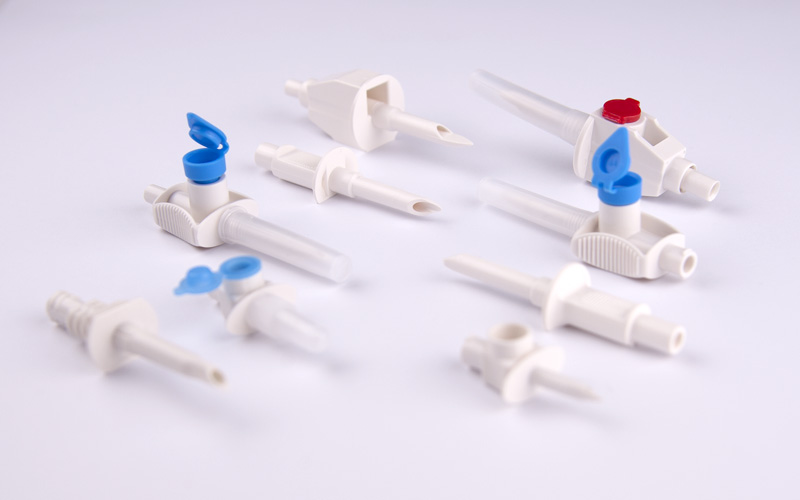

SPIKES

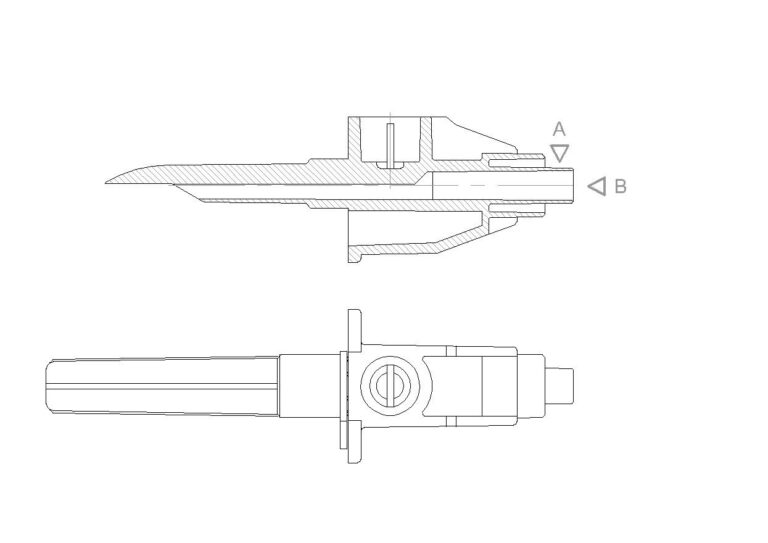

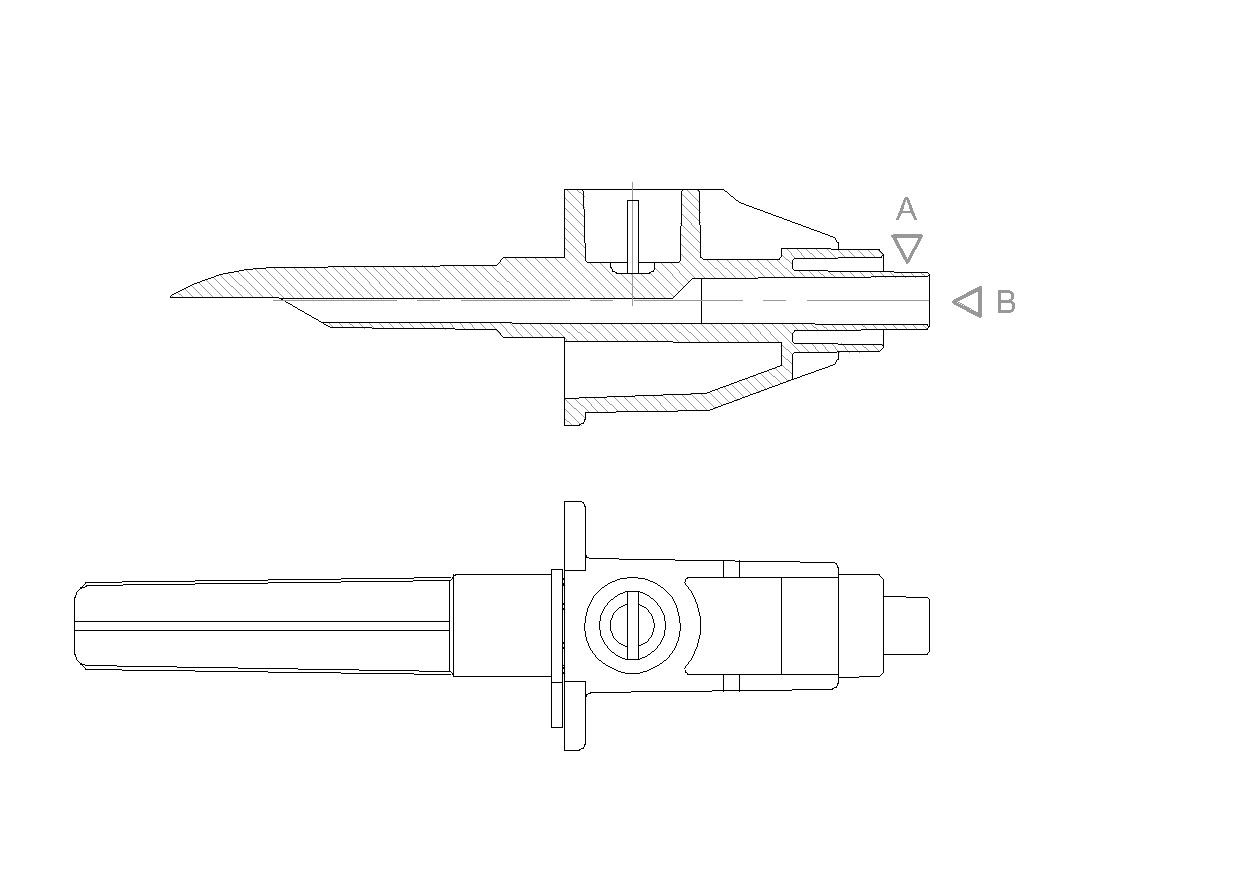

1 - WAY SPIKE FOR TUBE HIGH FLOW

CODE	NOTE	QUOTE	MATERIAL
280050	BODY SPIKE	A Ø 4.8mm - B Ø 4.1mm	ɤ ABS	5.000 - M³0.047
280050/A	ASSEMBLED	A Ø 4.8mm - B Ø 4.1mm	ɤ ABS + PE	2.000 - M³0.047

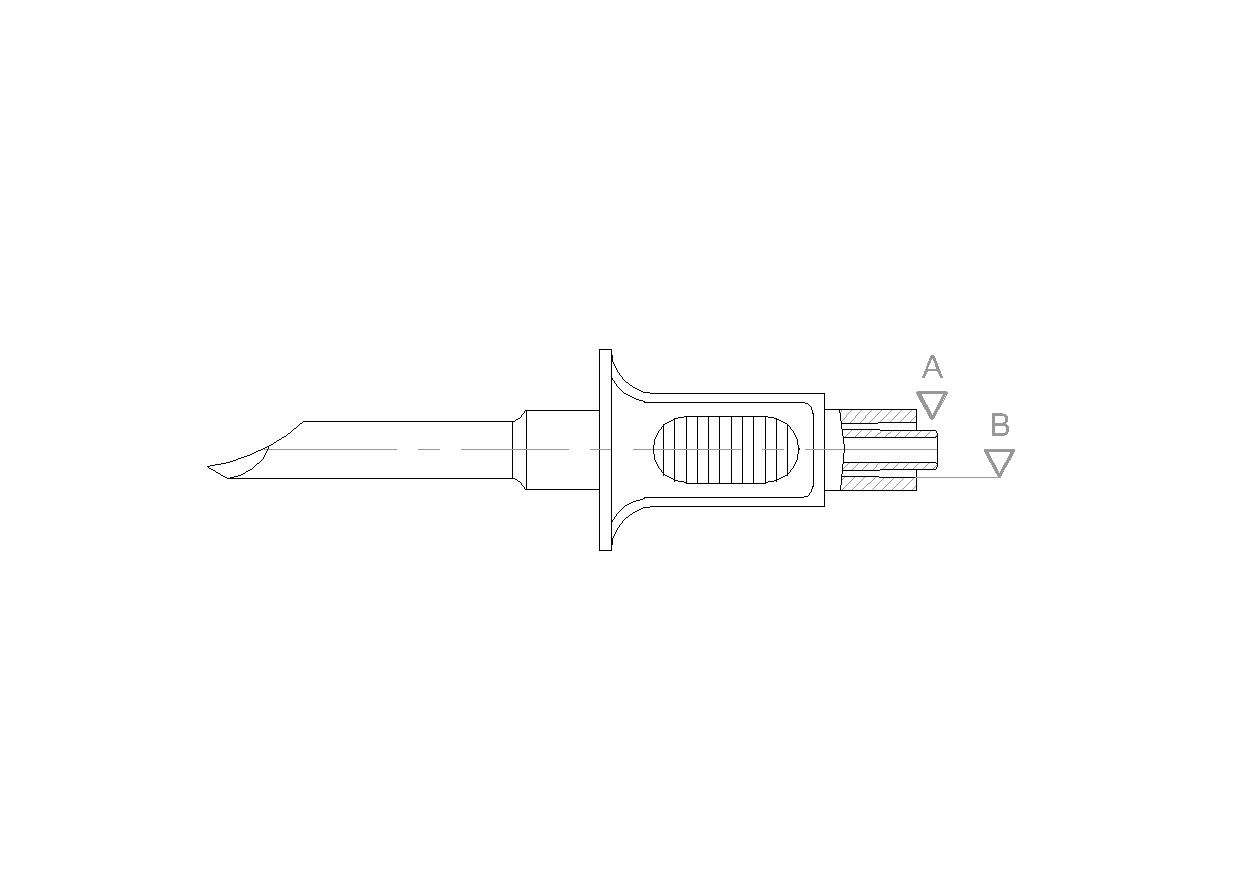

1 - WAY SPIKE FOR TUBE

CODE	QUOTE	MATERIAL
280055	A Ø 3.0mm - B Ø 4.8mm	ɤ ABS	4.500 - M³0.047
280068	A Ø 4.1mm - B Ø 6.5mm	ɤ ABS	4.500 - M³0.047

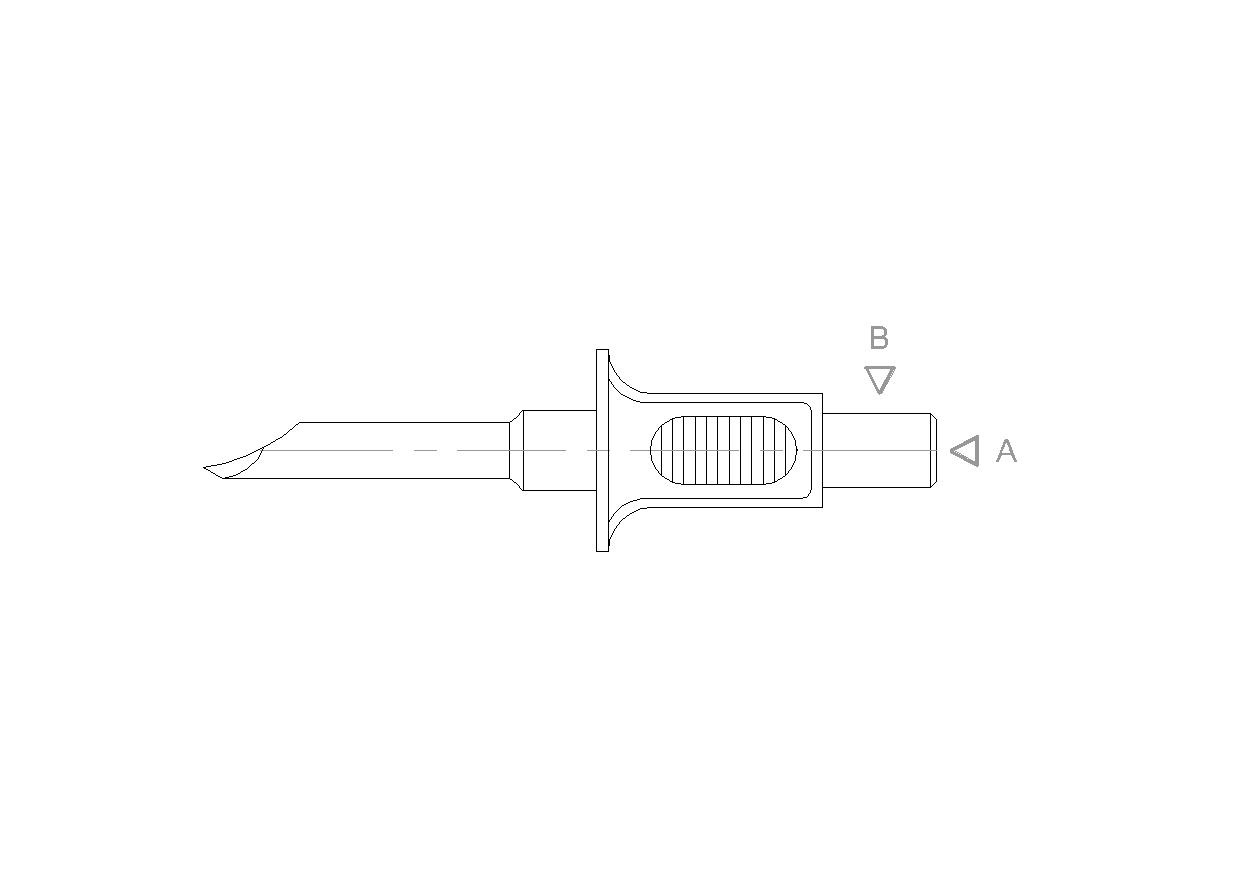

1 - WAY SPIKE FOR TUBE

CODE	QUOTE	MATERIAL
280041	A Ø 3.0mm - B Ø 4.8mm	ɤ ABS	4.500 - M³0.047

HIGH FLOW 1-WAY SPIKE FEMALE LUER LOCK

IN CONFORMITY WITH ISO 80369-7

CODE	MATERIAL
E3733003	ɤ ABS	5.000 - M³0.047

2 - WAY SPIKE FEMALE LUER LOCK

SPIKE TIP COMPLIANCE WITH ISO 8536-4 AND 1135-4 NORMS IN CONFORMITY WITH ISO 80369-7

CODE	NOTE	MATERIAL
F9200019	AIR FILTER MEMBRANE 3µm	ɤ PE + ABS + PP	2.500 - M³0.047

2 - WAY SPIKE FOR TUBE

SPIKE TIP COMPLIANCE WITH ISO 8536-4 AND 1135-4 NORMS

CODE	QUOTE	NOTE	MATERIAL
F9200018	A Ø 4.3mm - B Ø 4.1mm	AIR FILTER MEMBRANE 3µm	ɤ PE + ABS + PP	2.500 - M³0.047

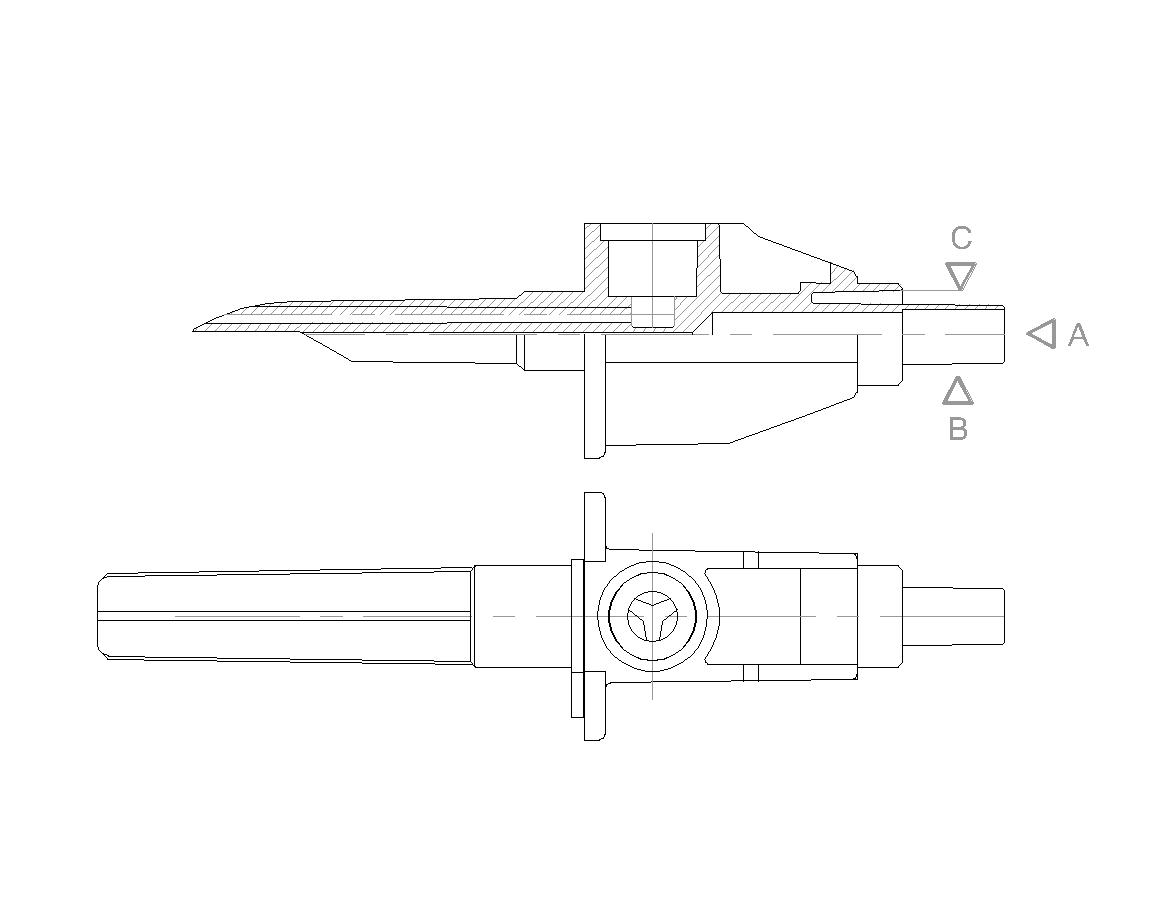

2 - WAY SPIKE FOR TUBE HIGH FLOW

CODE	NOTE	QUOTE	MATERIAL
280102/A/C	AIR CLOSED	A Ø 4.1mm - B Ø 4.8mm - C Ø 7.0mm	ɤ PE + ABS + PP	2.000 - M³0.047
280102/A	AIR OPEN	A Ø 4.1mm - B Ø 4.8mm - C Ø 7.0mm	ɤ PE + ABS + PP	2.000 - M³0.047
280103/A/C	AIR CLOSED	A Ø 4.5mm - B Ø 4.8mm - C Ø 7.0mm	ɤ PE + ABS + PP	2.000 - M³0.047
280103/A	AIR OPEN	A Ø 4.5mm - B Ø 4.8mm - C Ø 7.0mm	ɤ PE + ABS + PP	2.000 - M³0.047

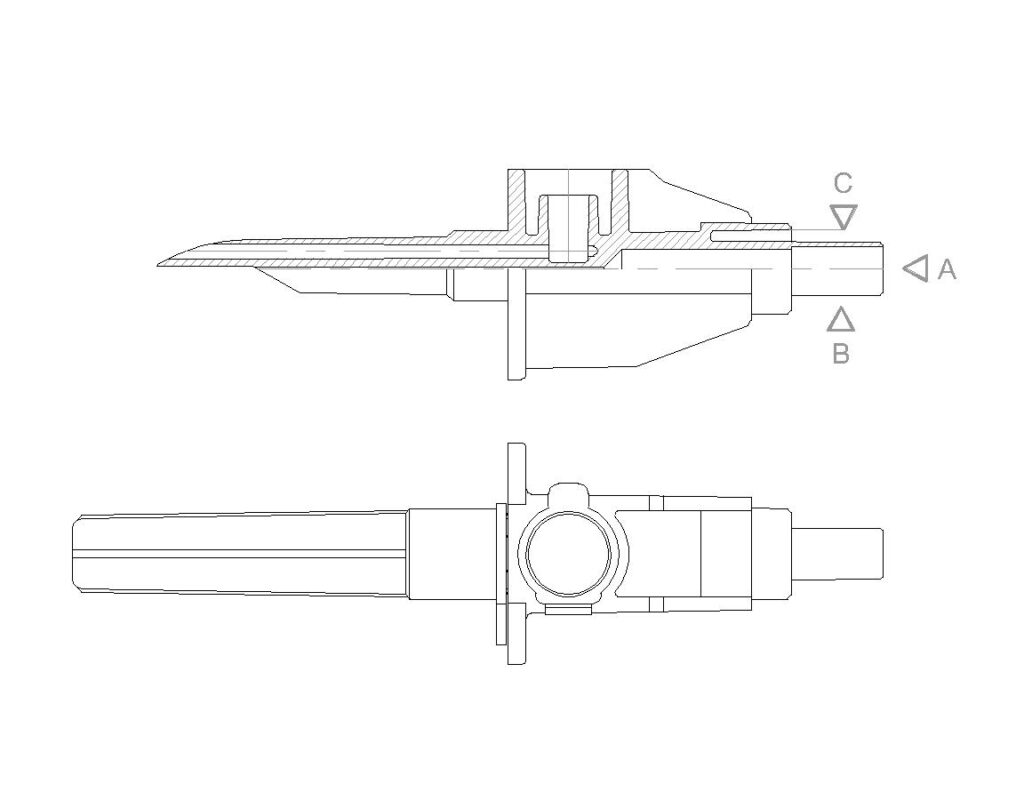

2 - WAY SPIKE FOR TUBE WITH CHECK VALVE

CODE	QUOTE	MATERIAL
F9200016	A Ø 4.1mm - B Ø 4.8mm - C Ø 7.0mm	ɤ PE + ABS	2.000 - M³0.047

2 - WAY MICROSPIKE FEMALE LUER LOCK WITH CHECK VALVE

CODE	NOTE	MATERIAL
F9200017	ASSEMBLED	ɤ PE + ABS	3.000 - M³0.047
