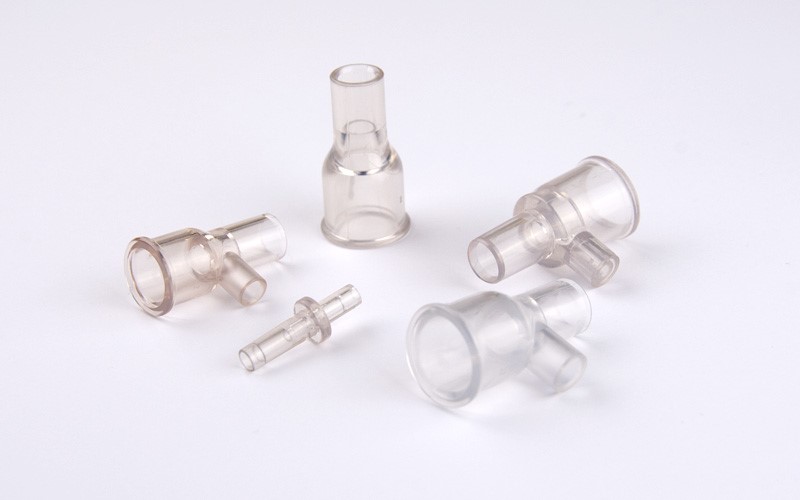

PUMP CONNECTOR

HMC Group / Componente / PUMP CONNECTOR

Prodotti

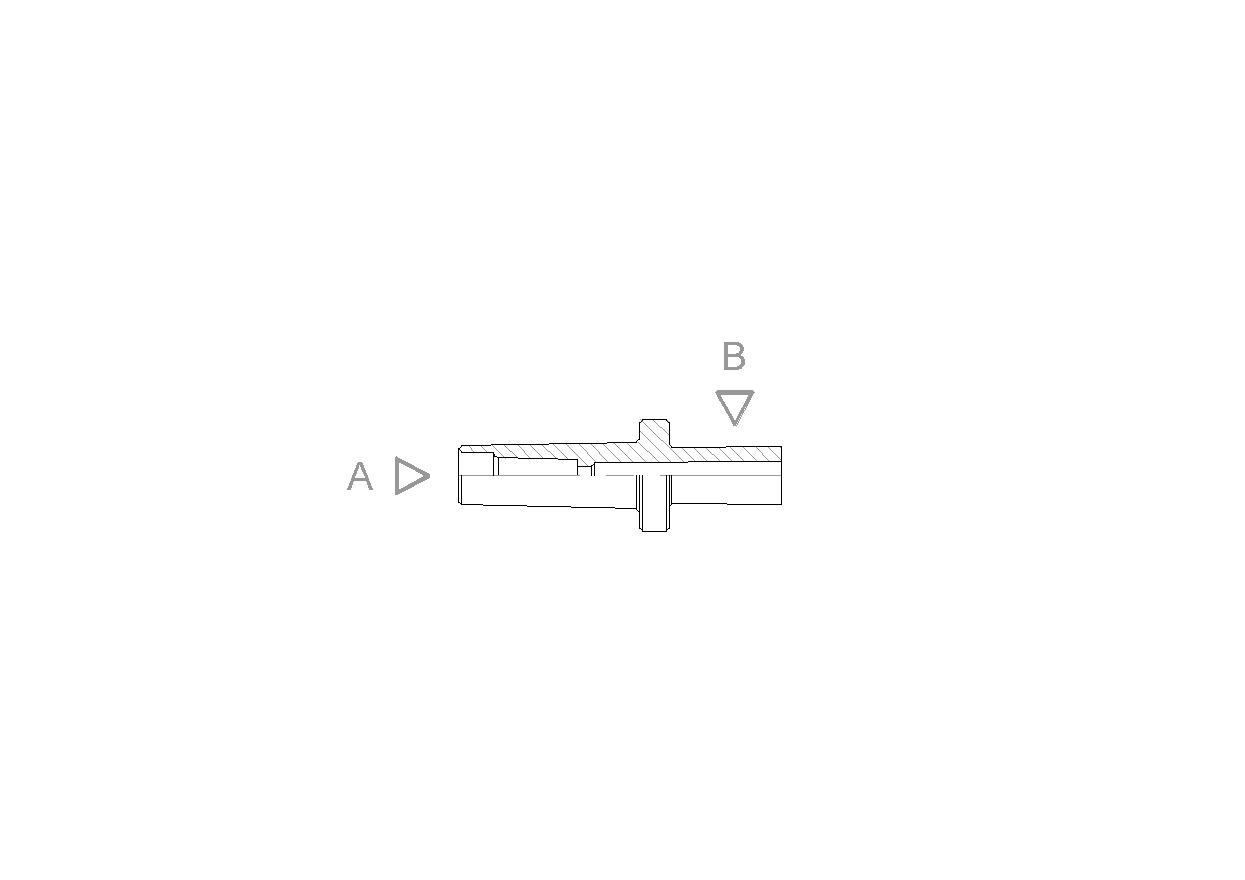

REDUCER CONNECTOR

CODE	QUOTE	MATERIAL
E1020001	A Ø 2.0mm - B i.d. 4.1mm	ɤ SOFT PVC	25.000 - M³0.047
E1020002	A Ø 2.5mm - B i.d. 4.1mm	ɤ SOFT PVC	25.000 - M³0.047

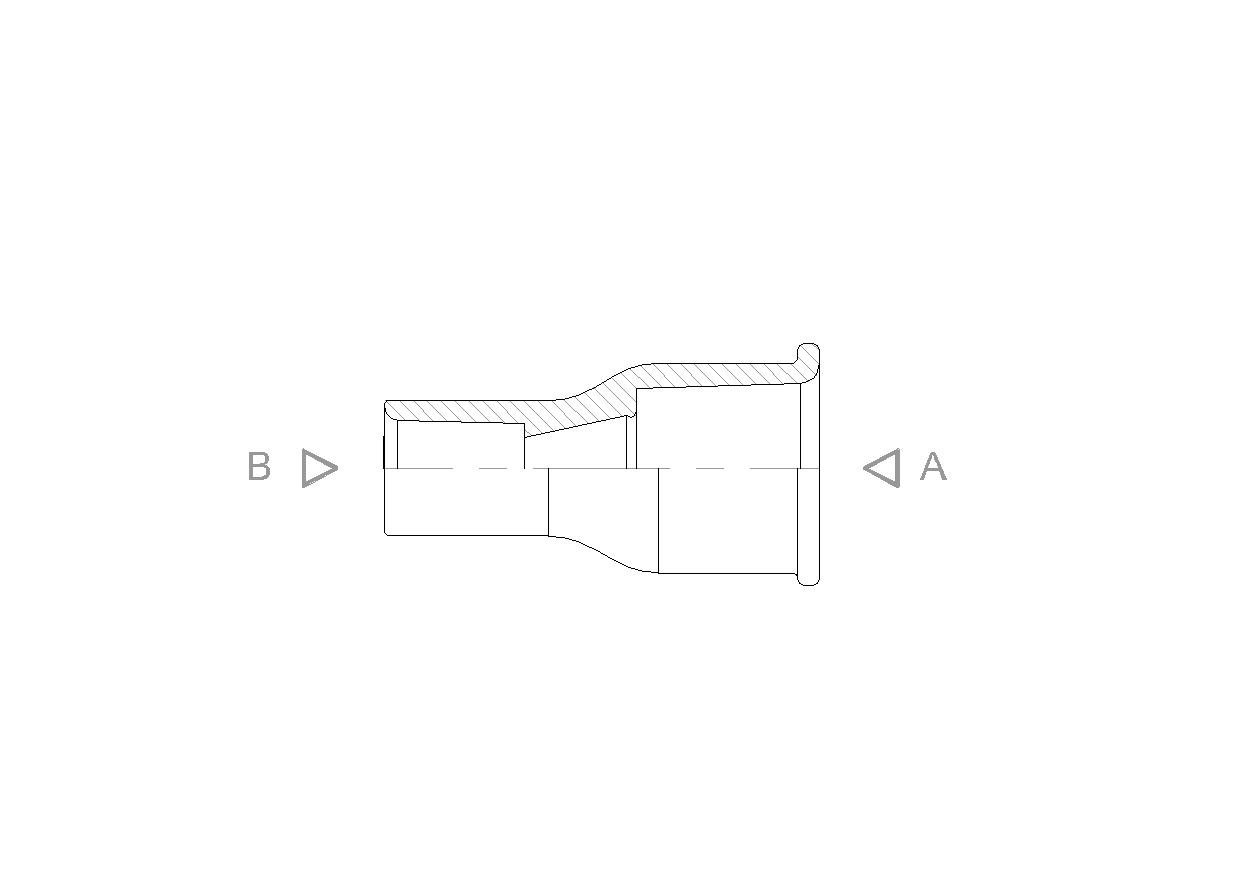

PUMP CONNECTOR

CODE	QUOTE	MATERIAL
E1320000	A Ø 9.54mm - B Ø 6.8mm	ɤ SOFT PVC	5.000 - M³0.047
E1320000DF	A Ø 9.54mm - B Ø 6.8mm	ɤ SOFT PVC	5.000 - M³0.047
E1320001	A Ø 12mm - B Ø 6.8mm	ɤ SOFT PVC	5.000 - M³0.047
E1320001DF	A Ø 12mm - B Ø 6.8mm	ɤ SOFT PVC	5.000 - M³0.047

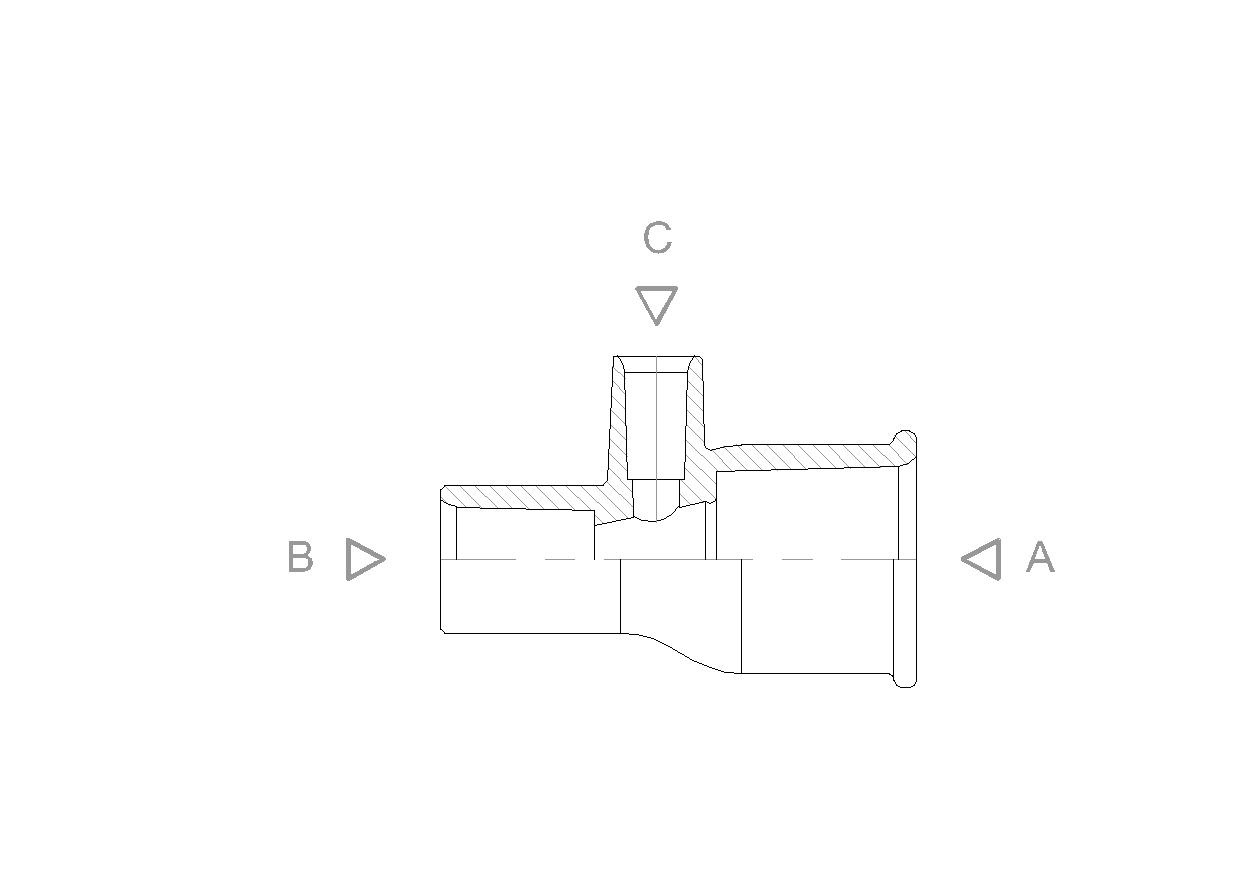

PUMP CONNECTOR

CODE	QUOTE	MATERIAL
E1420003	A Ø 9.54mm - B Ø 6.8mm - C Ø 4.1mm	ɤ SOFT PVC	5.000 - M³0.047
E1420003DF	A Ø 9.54mm - B Ø 6.8mm - C Ø 4.1mm	ɤ SOFT PVC	5.000 - M³0.047
E1420004	A Ø 9.54mm - B Ø 6.8mm - C Ø 5.5mm	ɤ SOFT PVC	5.000 - M³0.047
E1420004DF	A Ø 9.54mm - B Ø 6.8mm - C Ø 5.5mm	ɤ SOFT PVC	5.000 - M³0.047
E1420008	A Ø 12mm - B Ø 6.8mm - C Ø 4.1mm	ɤ SOFT PVC	5.000 - M³0.047
E1420008DF	A Ø 12mm - B Ø 6.8mm - C Ø 4.1mm	ɤ SOFT PVC	5.000 - M³0.047
E1420009	A Ø 12mm - B Ø 6.8mm - C Ø 5.5mm	ɤ SOFT PVC	5.000 - M³0.047
E1420009DF	A Ø 12mm - B Ø 6.8mm - C Ø 5.5mm	ɤ SOFT PVC	5.000 - M³0.047

PUMP CONNECTOR

CODE	QUOTE	MATERIAL
E1420003+E1020001	A Ø 9.54mm - B Ø 6.8mm - C Ø 2.0mm	ɤ SOFT PVC	5.000 - M³0.047
E1420003+E1020002	A Ø 9.54mm - B Ø 6.8mm - C Ø 2.5mm	ɤ SOFT PVC	5.000 - M³0.047
E1420008+E1020001	A Ø 12mm - B Ø 6.8mm - C Ø 2.0mm	ɤ SOFT PVC	5.000 - M³0.047
E1420008+E1020002	A Ø 12mm - B Ø 6.8mm - C Ø 2.5mm	ɤ SOFT PVC	5.000 - M³0.047

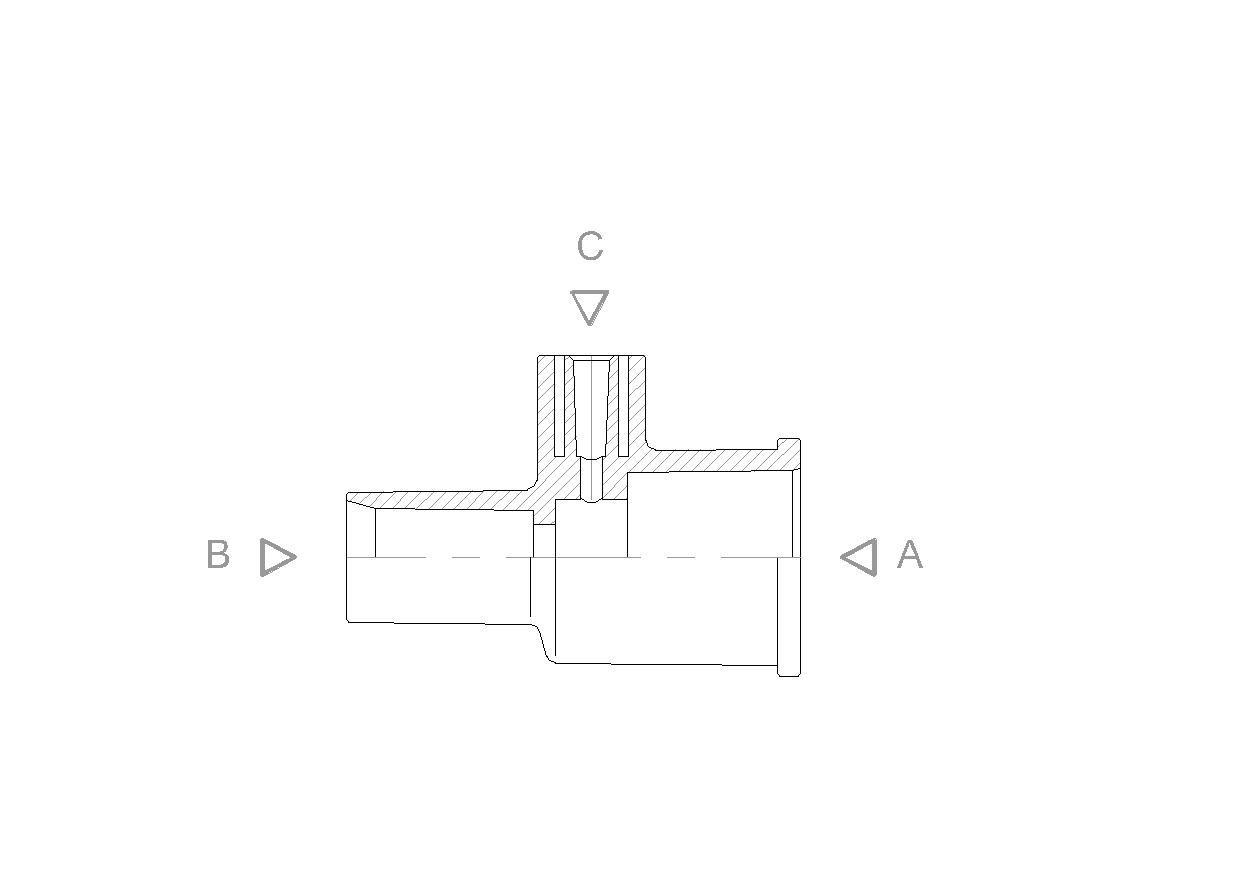

PUMP CONNECTOR

CODE	QUOTE	MATERIAL
E1420010	A Ø 12mm - B Ø 6.8mm - C Ø 2.0mm	ɤ SOFT PVC	5.000 - M³0.047
E1420011	A Ø 12mm - B Ø 6.8mm - C Ø 2.5mm	ɤ SOFT PVC	5.000 - M³0.047
E1420012	A Ø 9.54mm - B Ø 6.8mm - C Ø 2.0mm	ɤ SOFT PVC	5.000 - M³0.047
E1420013	A Ø 9.54mm - B Ø 6.8mm - C Ø 2.5mm	ɤ SOFT PVC	5.000 - M³0.047
