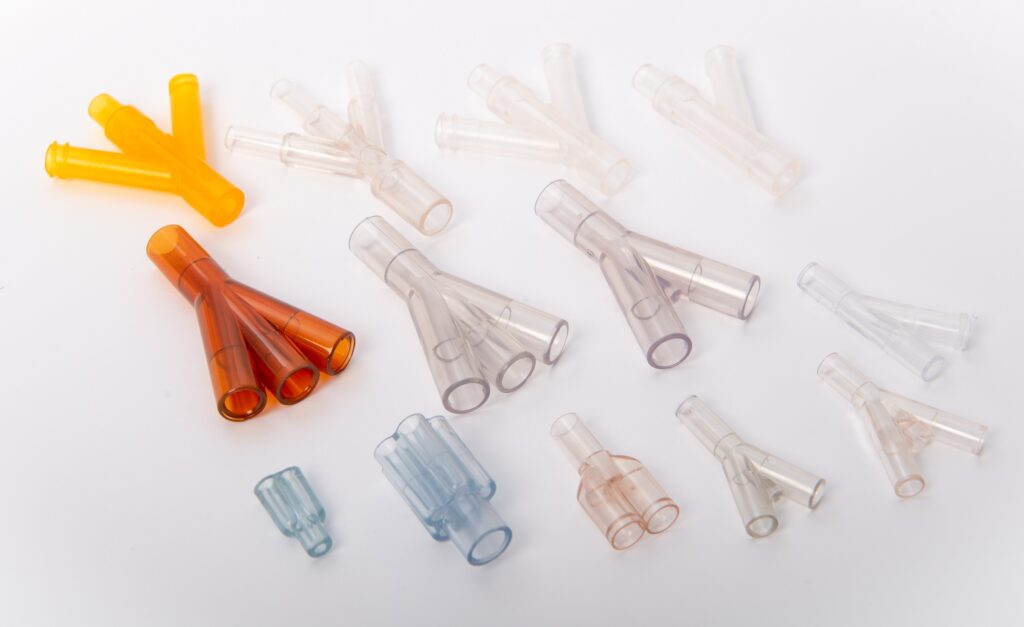

MULTIWAY CONNECTOR

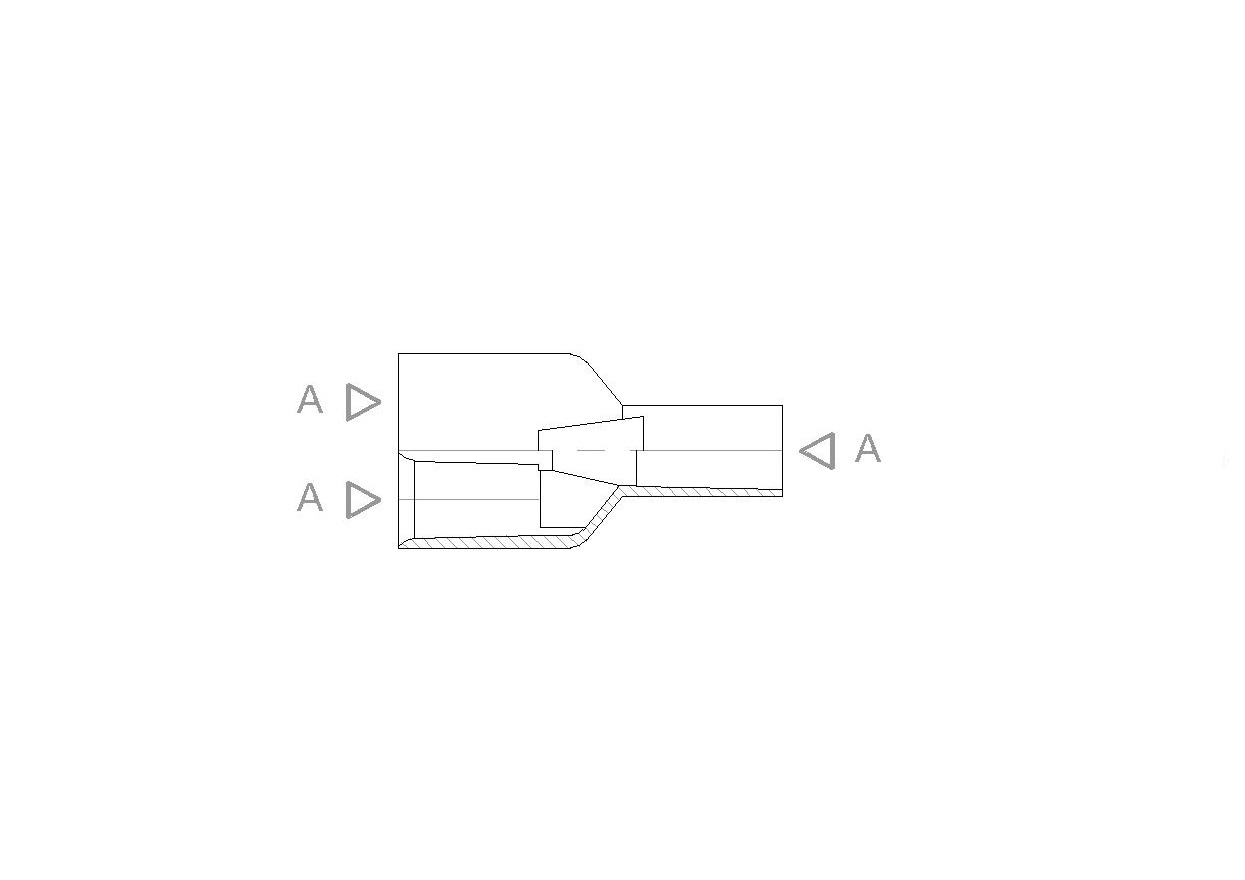

3 - PARALLEL CONNECTOR

CODE	QUOTE	MATERIAL
E1620011DF	A Ø 5.5mm	ɤ SOFT PVC	10.000 - M³0.047

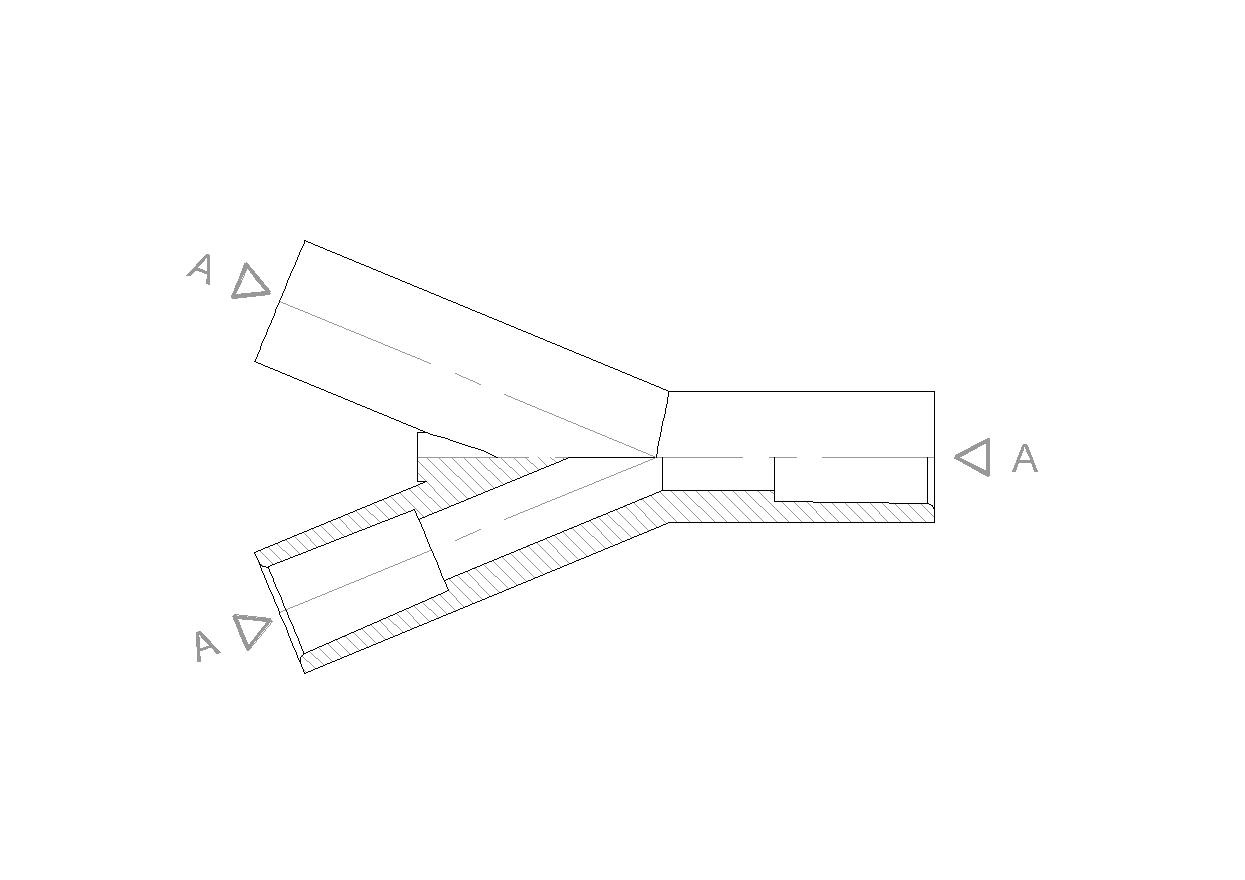

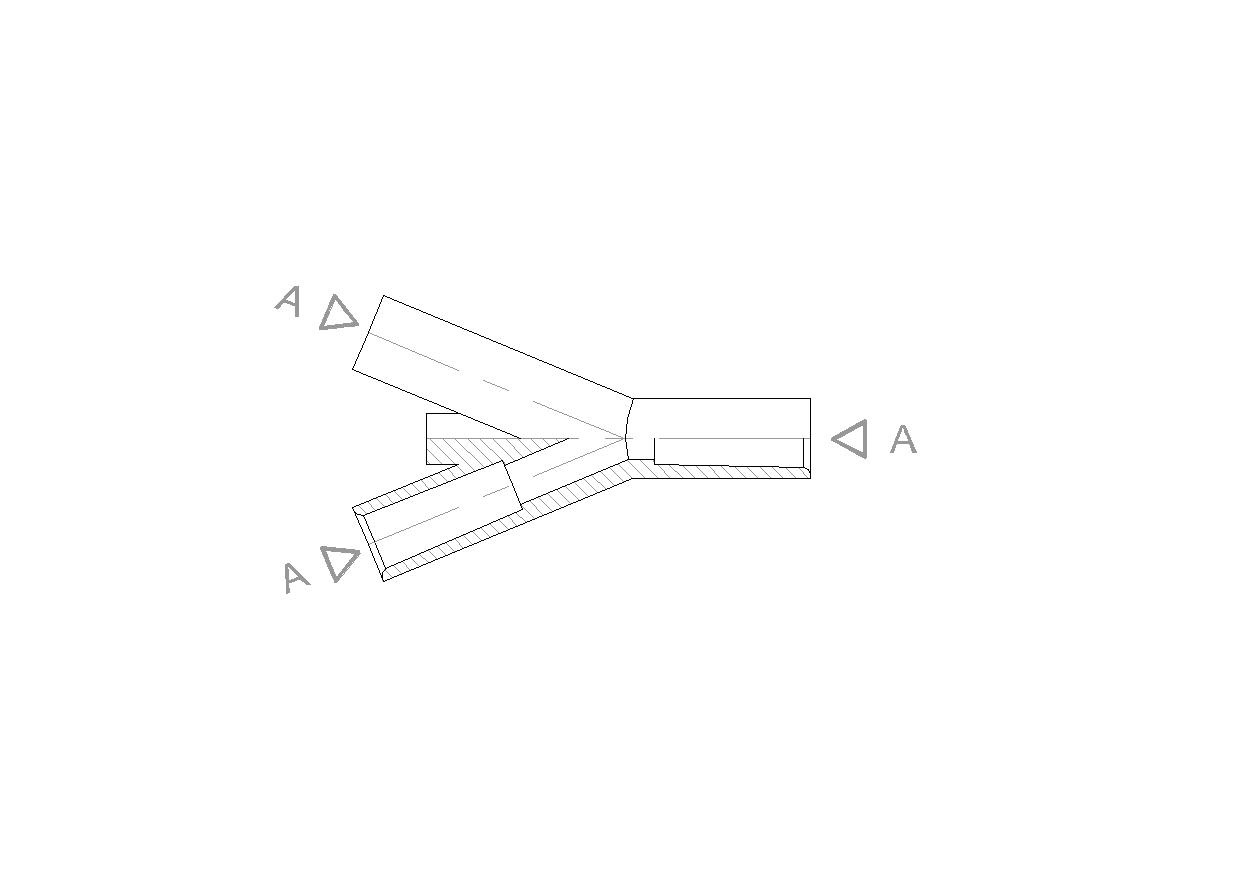

3 - WAY CONNECTOR

CODE	QUOTE	MATERIAL
E1620029DF	A Ø 4.1mm	ɤ PVC	10.000 - M³0.047

3 - WAY CONNECTOR

CODE	QUOTE	MATERIAL
E1620030DF	A Ø 5.5mm	ɤ PVC	5.000 - M³0.047

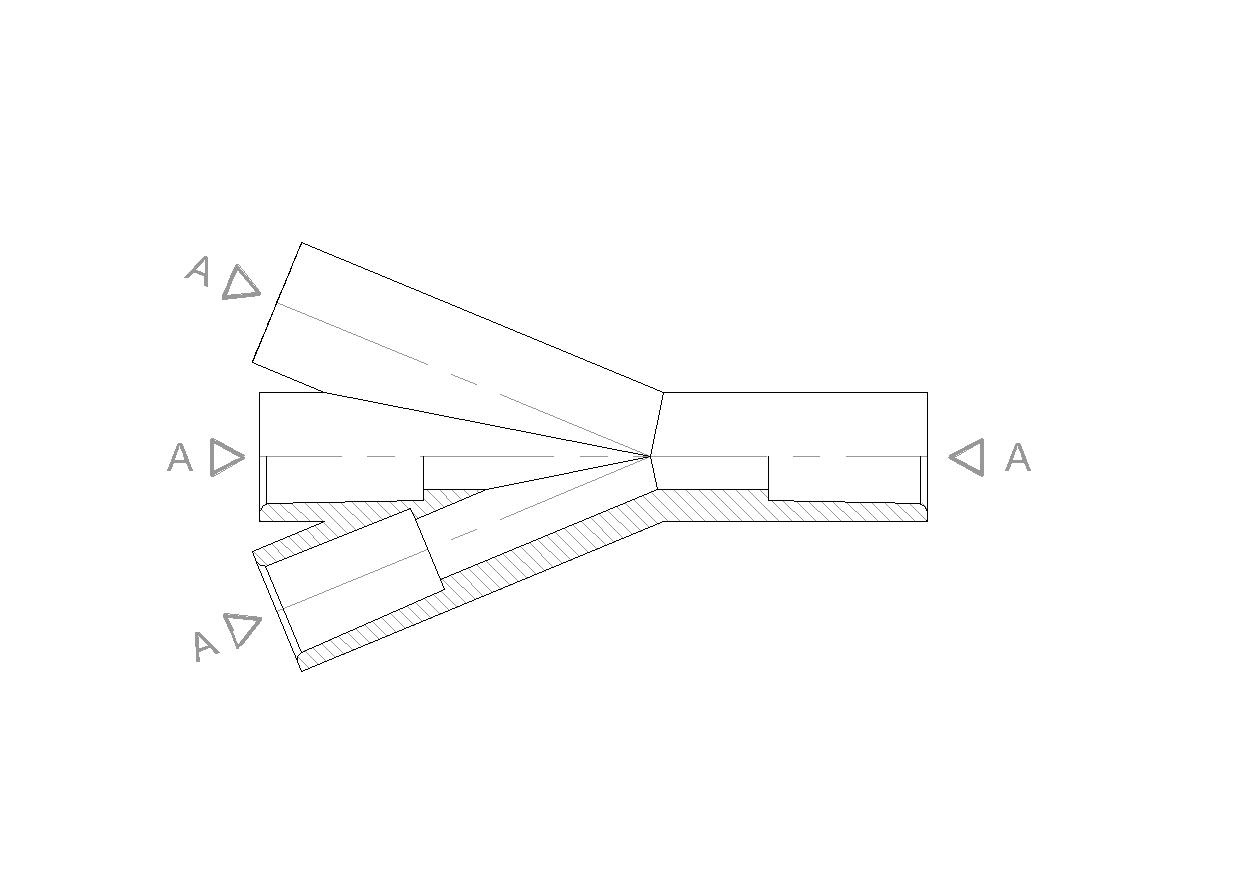

4 - WAY CONNECTOR

CODE	QUOTE	MATERIAL
E1620023	A Ø 6.8mm	ɤ SOFT PVC	3.500 - M³0.047
E1620023DF	A Ø 6.8mm	ɤ SOFT PVC	3.500 - M³0.047

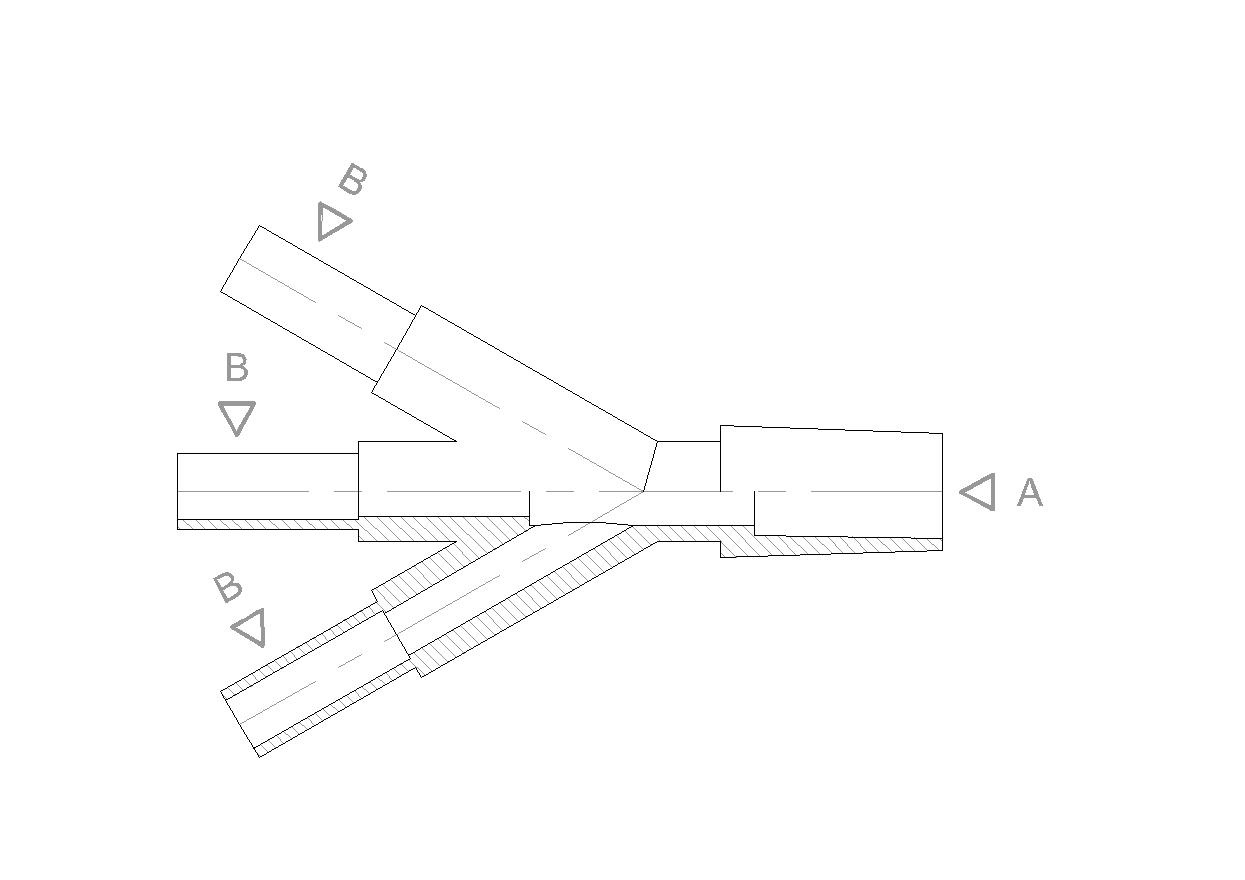

4 - WAY CONNECTOR

CODE	QUOTE	MATERIAL
3004	A Ø 6.8mm - B Ø 4.3mm	ɤ SOFT PVC	2.500 - M³0.091
3004DF	A Ø 6.8mm - B Ø 4.3mm	ɤ SOFT PVC	2.500 - M³0.091

2 - WAY CONNECTOR

CODE	QUOTE	MATERIAL	COLOURS
E1620017	A Ø 6.6mm - B Ø 6.8mm - C Ø 6.3mm	ɤ SOFT PVC	Neutral	3.500 - M³0.047
E1625000	A Ø 6.6mm - B Ø 6.8mm - C Ø 6.3mm	ɤ SOFT PVC	Ambered	3.500 - M³0.047

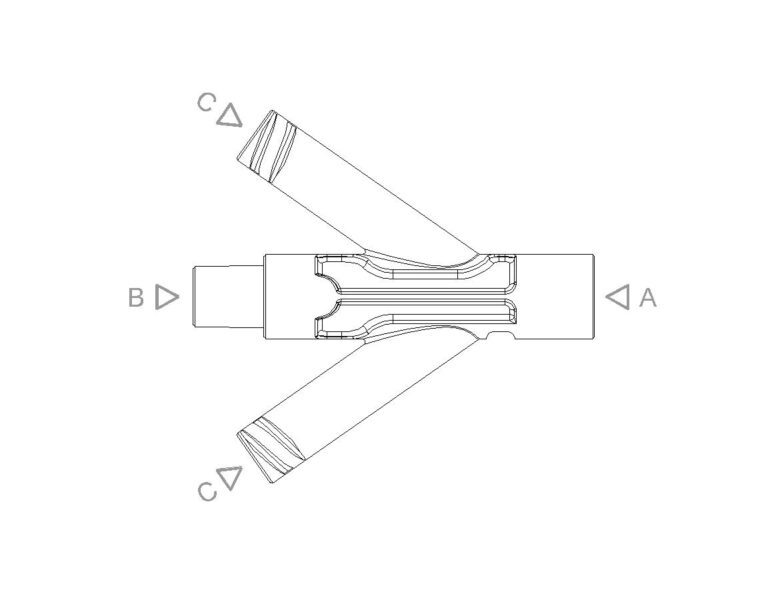

4-WAY CONNECTOR Ø4.1mm

IN CONFORMITY WITH ISO 80369-7

CODE	QUOTE	MATERIAL	COLOURS
E1630004	A Ø 4.1mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Neutral	4.000 - M³0.047
E1635004	A Ø 4.1mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Yellow	4.000 - M³0.047

4-WAY CONNECTOR Ø6.6mm

IN CONFORMITY WITH ISO 80369-7

CODE	QUOTE	MATERIAL	COLOURS
E1630005	A Ø 6.6mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Neutral	4.000 - M³0.047
E1635005	A Ø 6.6mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Yellow	4.000 - M³0.047

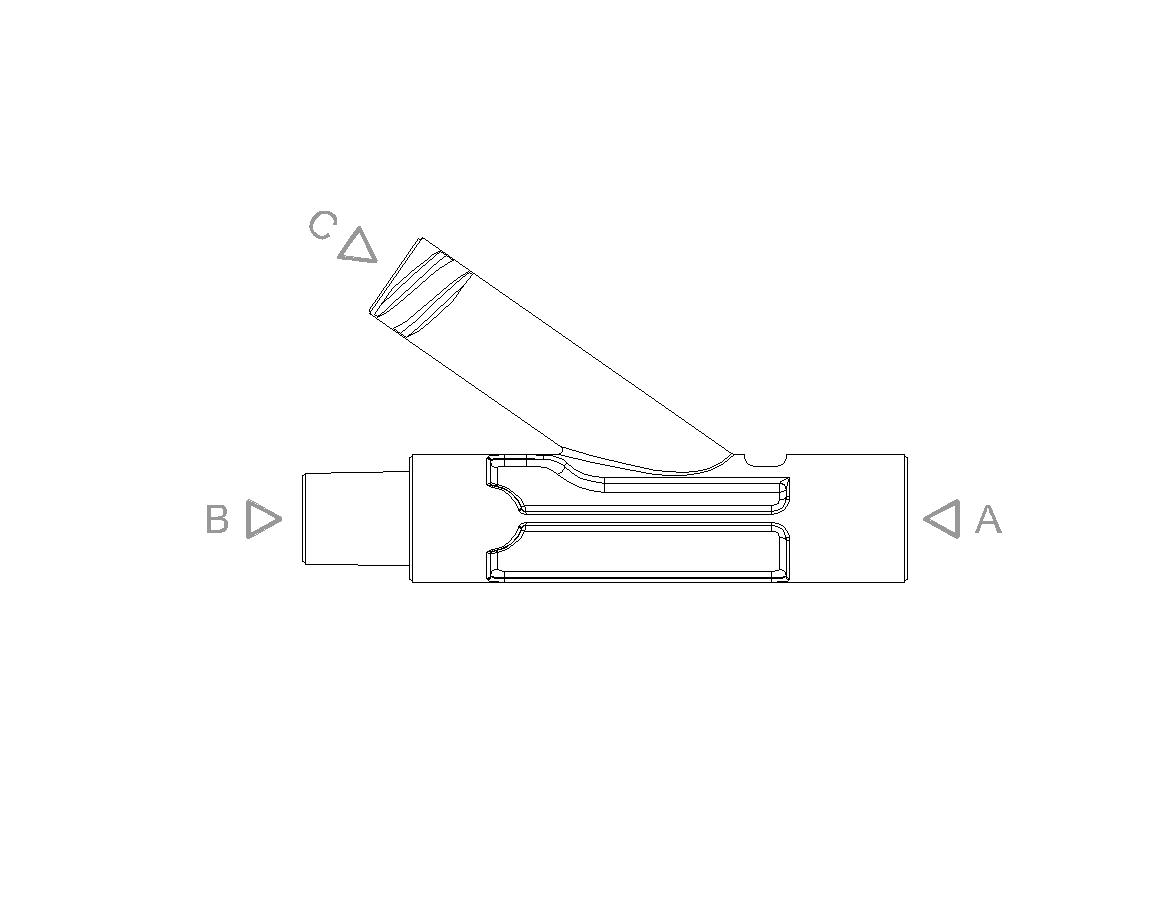

3-WAY CONNECTOR Ø6.6mm

IN CONFORMITY WITH ISO 80369-7

CODE	QUOTE	MATERIAL	COLOURS
E1630007	A Ø 6.6mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Neutral	4.000 - M³0.047
E1635007	A Ø 6.6mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Yellow	4.000 - M³0.047

3-WAY CONNECTOR Ø4.1MM

IN CONFORMITY WITH ISO 80369-7

CODE	QUOTE	MATERIAL	COLOURS
E1630006	A Ø 4.1mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Neutral	4.000 - M³0.047
E1635006	A Ø 4.1mm - B Ø 4.1mm - C Ø 4.1mm - Female Luer	ɤ ABS	Yellow	4.000 - M³0.047
